Product Description:

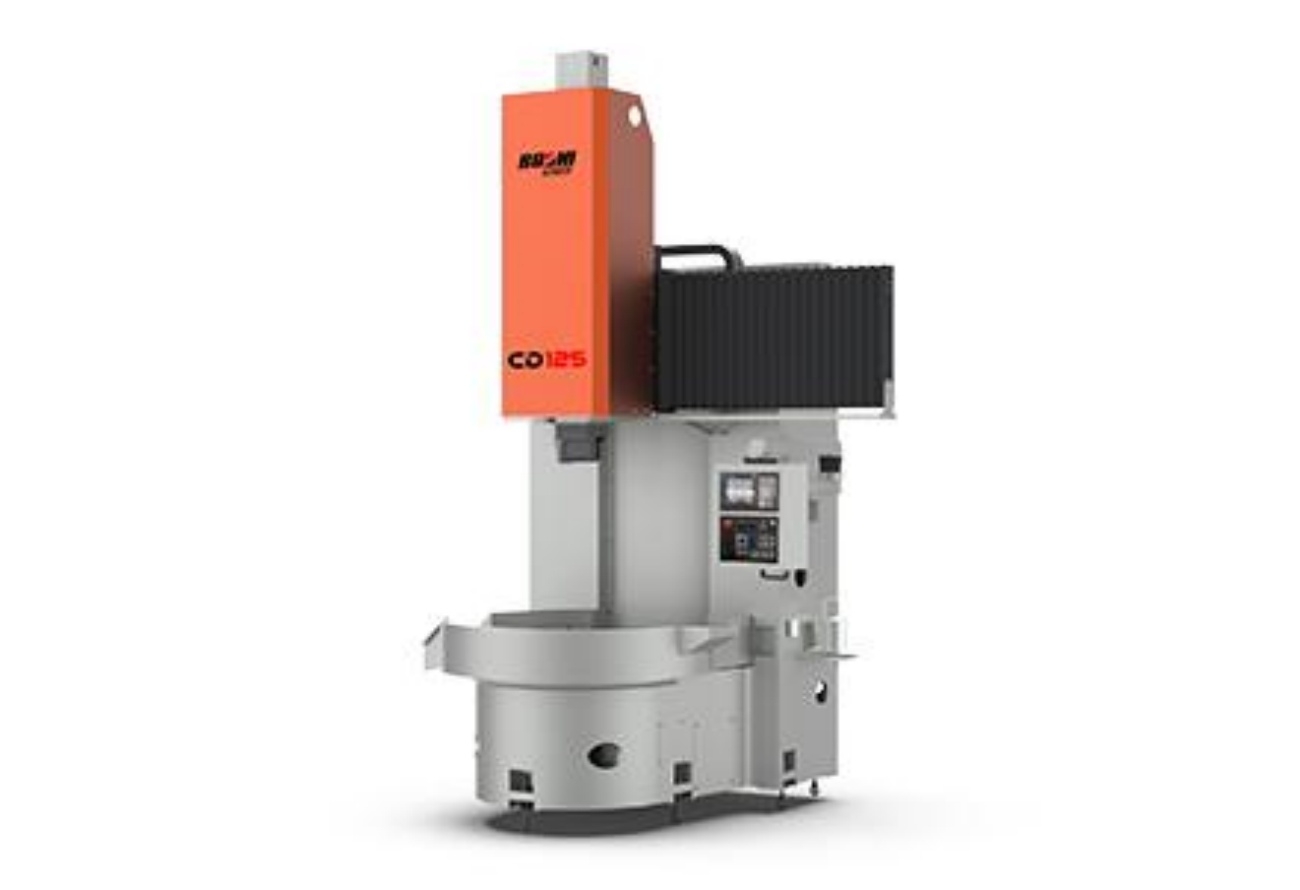

CD125 is a CNC vertical lathe make the main structure as the base, adopt the single column structure It adopts a work table, fixed beam, square sliding pillow, and single tool holder structure, equipped with simple protection and without cooling device. It is a high rigidity and cost-effective economic CNC vertical lathe that can perform machining of various inner and outer cylindrical surfaces, conical surfaces, curved surfaces, etc. It is particularly suitable for machining motor shells, large and medium-sized disk sleeves, covers, and other parts. Suitable for industries such as electromechanical, automotive, wind power, and construction machinery.


Technical Specifications:

Item

technical parameter

Capacity









work table diameter mm

1050

Max. rotation diameter mm

Φ1250

Max. turning diameter mm

Φ1100

Max. workpiece length mm

900

Max. Workpiece Weight kg

4000

work table





Work table speed r/min

15~200

Max. torque of work table Nm

1700

Power of main motor (cont./30min) kW

22/30

feed













X-axis Travel distance mm

650

Travel distance mm

900

Rapid movement speed X/Z m/min

10/10

Servo motor torque X/Z Nm

23/23

Servo motor power X/Z kW

4.0/4.0

Ball screw diameter X/Z mm

Φ50 /Φ50

turret



Number of stations

3 (Simultaneously 2)

Tool size mm

32X32

other





Power supply kVA

25

Volume (length x width x height) mm

2500X2300X4000

Total weight kg

10000
