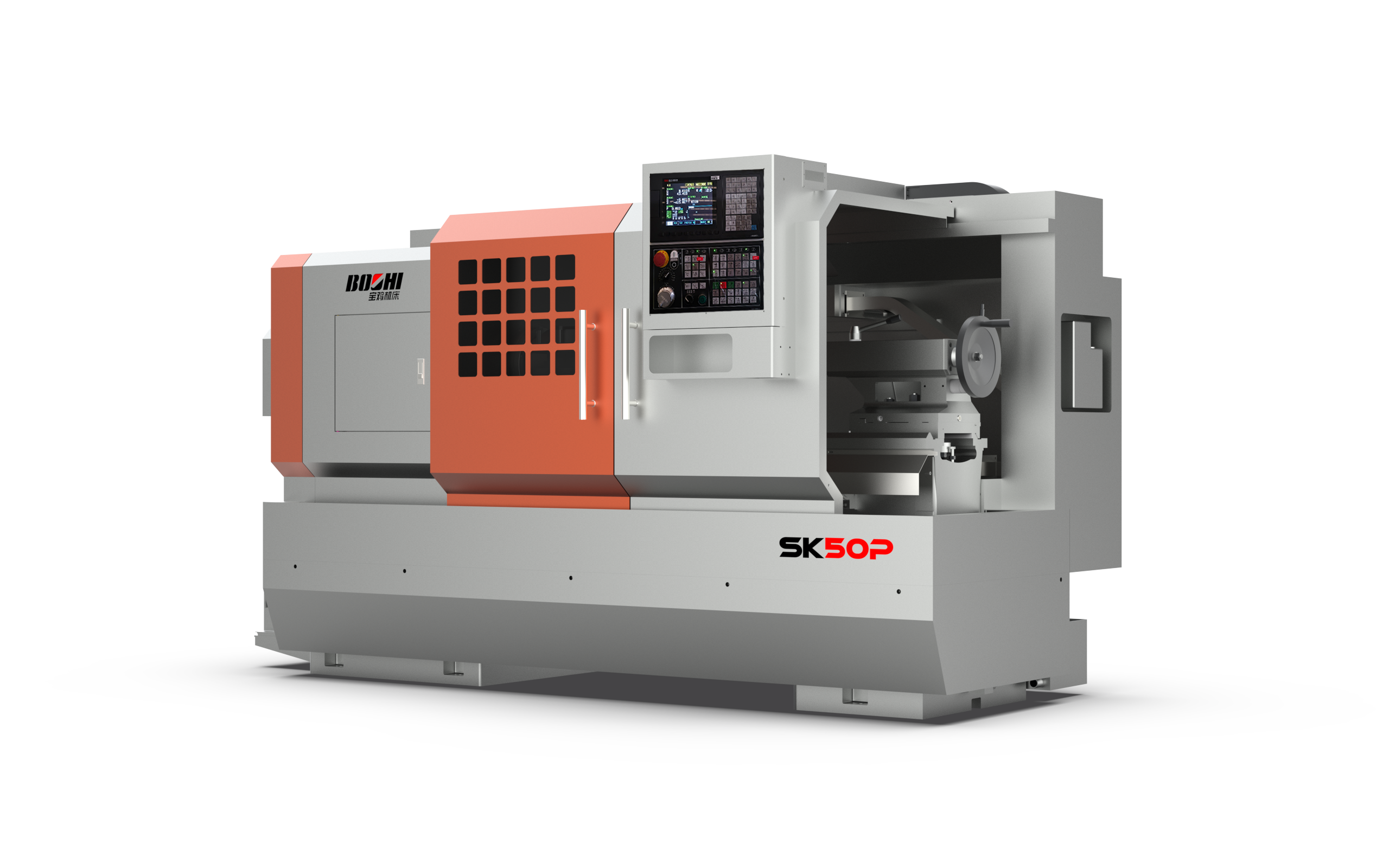

SK50P(S) CNC Lathe watch video
Product Description:

SK50P series lathe is an Economic CNC lathe driven by servo motor. Either 4-station turret (standard equipment) or 6-station turret can be equipped for cutting different shapes of workpieces. The lathe has beautiful guard. Its well designed sliding door is easy to use and functions as a protector of operators’ safety.

Features: steady start, quick stop, high output torque. The lathe is suitable for turning shaft type and plate/ring type workpieces. Operations performed on the lathe are ID/OD turning, any taper turning, arc surface turning, facing and metric/inch threading. It is suitable for cutting multi specification work in batches, especially complex and high precision workpieces.


Technical Specifications:

Item

Unit

SK50P(S).750

SK50P(S)

SK50P(S).1500

SK50P(S).2000

SK50P(S).3000

Max. swing over bed

mm

φ500

Max. swing over slide

mm

φ280

Max. turning dia.

mm

φ500/3501

Max. Workpiece length

mm

750/620

1000/870

1500/1370

2000/1870

3000/2870

Max. turning length

mm

570/500

820/750

1320/1250

1820/1750

2820/2750

Spindle

Taper hole

mm

φ77/φ82

Spindle nose



 φ77  ISO702/ⅠA28

 φ82  ISO702/ⅠA28

φ77  ISO702/ⅡD8

Spindle speed

r/min

3 gear stepless     21-1620

H:162-1620  M:66-660  L:21-210

Max. output torque of spindle

N.m

800

Max. rapid traverse

Max.m/min

X:6

Z: 8

Pitch of screw

mm

X: Φ40×5        Z: Φ40×6/Φ50×6(2000)/ Φ63×8(3000)

Capacity of turret



4(standard)/6(optional)

Max. permissible tool section

mm×mm

25×25

Travel of turret

mm

X: 275  Z: 600/850/1350/1850/2850

Dia. of tailstock quill

mm

φ75(φ80 hydraulic tailstock)

Taper of tailstock quill



MT No.5(MT No.3 Hydraulic tailstock)

Max. travel of tailstock quil

mm

150(130  Hydraulic tailstock)

Cross travel of tailstock

mm

±15

Main motor power

kW

7.5KW servo motor

Coolant pump

W

AOB-25      125W

Note *: data after “/” is for lathe equipped with horizontal 6-station turret (swing dia. of tool disk is assumed φ360).



Dimension (L×W×H)





750

mm× mm× mm

2460×1520×1680

1000

2760×1520×1680

1500

3260×1520×1680

2000

3760×1520×1680

3000

4760×1520×1680



Packing size (L×W×H)





750

ccm× cm× cm

288×185×224

1000

313×185×224

1500

363×185×224

2000

413×185×224

3000

513×185×224



Net weight of machine



1000

kg

2050

1500

2100

2000

2150

3000

2200

3000

3500
