Product Description:

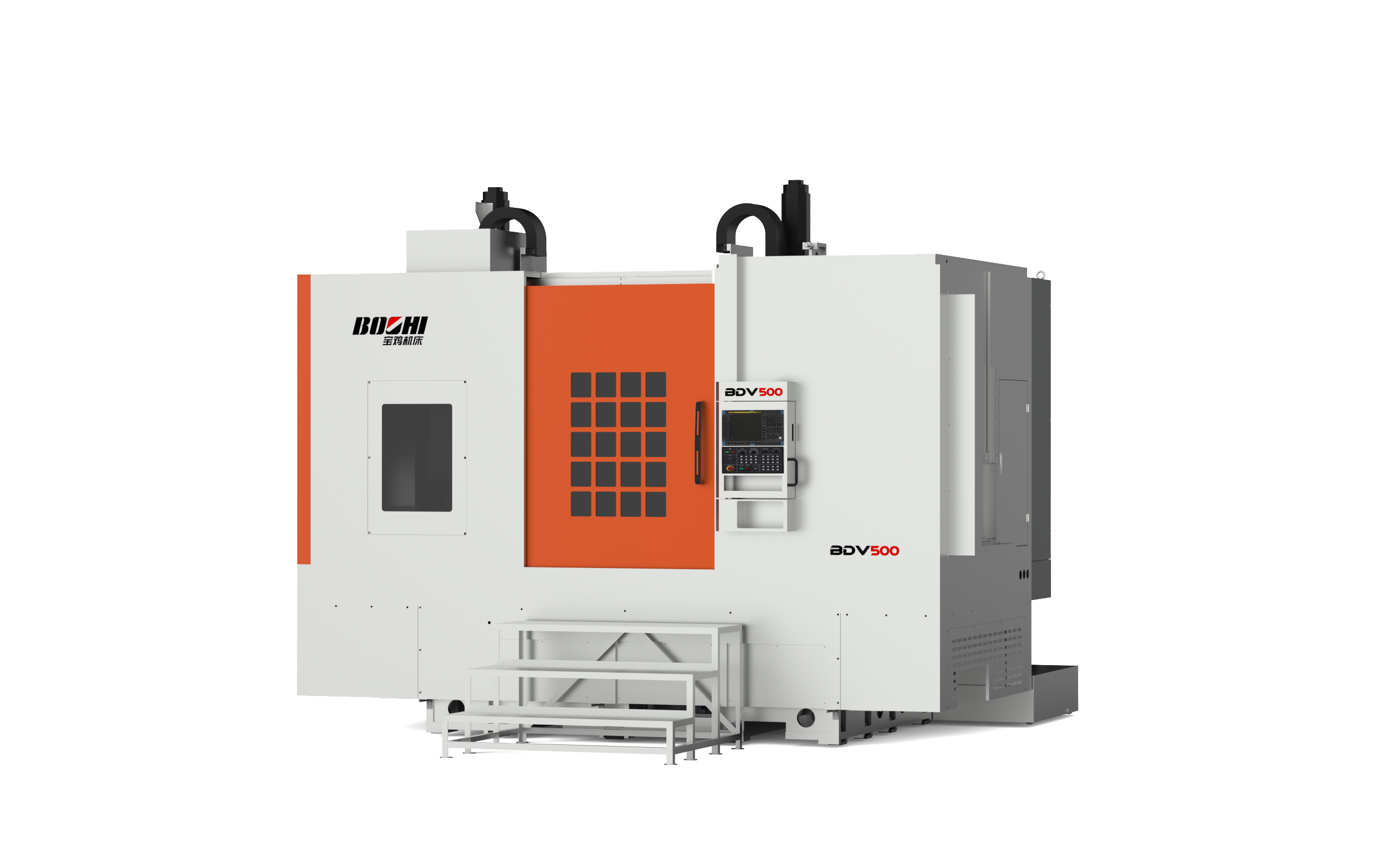

BDV500 is a vertical-invertical combination high-efficiency CNC lathe with wide rectangular hardened guideway. The machine is designed according to vertical-invertica double spindle and double turret design, controlled by dual-channel CNC system, in which the inverted vertical lathe unit is on the left side of the machine tool, and the vertical lathe unit is on the right side, and the integrated layout realizes the workpiece to be automatically docked between the two spindles to complete the positive and negative machining. It improves the processing efficiency and realizes single-machine automatic processing. Turning of various internal and external cylindrical surfaces, conical surfaces, circular curved surfaces, metric and imperial threads, etc. can be performed. Suitable for semi-fine and fine machining of disk sleeve and short shaft parts in automobile, motor, bearing, hydraulic and other industries. Translated with www.DeepL.com/Translator (free version)

Technical Specifications:

Item

Specification

Max. rotation diameter mm ( mm )

Φ600

Maximum cutting diameter (mm)

Φ500

Maximum cutting height (mm)

300

Max. Workpiece Weight ( Kg )

100

Size of upper and lower Chuck: (mm)

Φ 450 (18 Å medium solid)

Spindle nose: (GB/T5900.1)

A2-11

Upper and lower Spindle speed range: r/min

20-2000

Power kW for upper and lower motorized spindles

26/37

Maximum torque of upper and lower spindles in Nm

505 (continuous rated)/1023 (maximum rated)

Rapid feed speed : m/min

X-axis: 16 Z-axis: 16

X/Z-axis travel: (mm)

X1 axis: 1705 X2 axis: 510

Z1 axis: 650 Z2 axis: 450

Minimum resolution: (mm)

0.001

Number of stations

8

Tools clamping size turning/boring: (mm)

32X32/Φ50

Power Supply: (kVA)

140

Machine tool volume length x width x height: (mm)

4600X3500X3600

(Excluding chip conveyor and loading and unloading channels)

Machine tool weight: (kg)

25000

Max. rotation diameter mm ( mm )

Φ600

Maximum cutting diameter (mm)

Φ500

Maximum cutting height (mm)

300

Max. Workpiece Weight ( Kg )

100

Size of upper and lower Chuck: (mm)

Φ 450 (18 Å medium solid)

Spindle nose: (GB/T5900.1)

A2-11

Upper and lower Spindle speed range: r/min

20-2000

Power kW for upper and lower motorized spindles

26/37

Maximum torque of upper and lower spindles in Nm

505 (continuous rated)/1023 (maximum rated)

Rapid feed speed : m/min

X-axis: 16 Z-axis: 16

X/Z-axis travel: (mm)

X1 axis: 1705 X2 axis: 510

Z1 axis: 650 Z2 axis: 450

Minimum resolution: (mm)

0.001

Number of stations

8

Tools clamping size turning/boring: (mm)

32X32/Φ50

Power Supply: (kVA)

140

Machine tool volume length x width x height: (mm)

4600X3500X3600

(Excluding chip conveyor and loading and unloading channels)

Machine tool weight: (kg)

25000
