CK7660LE watch video
Product Description:

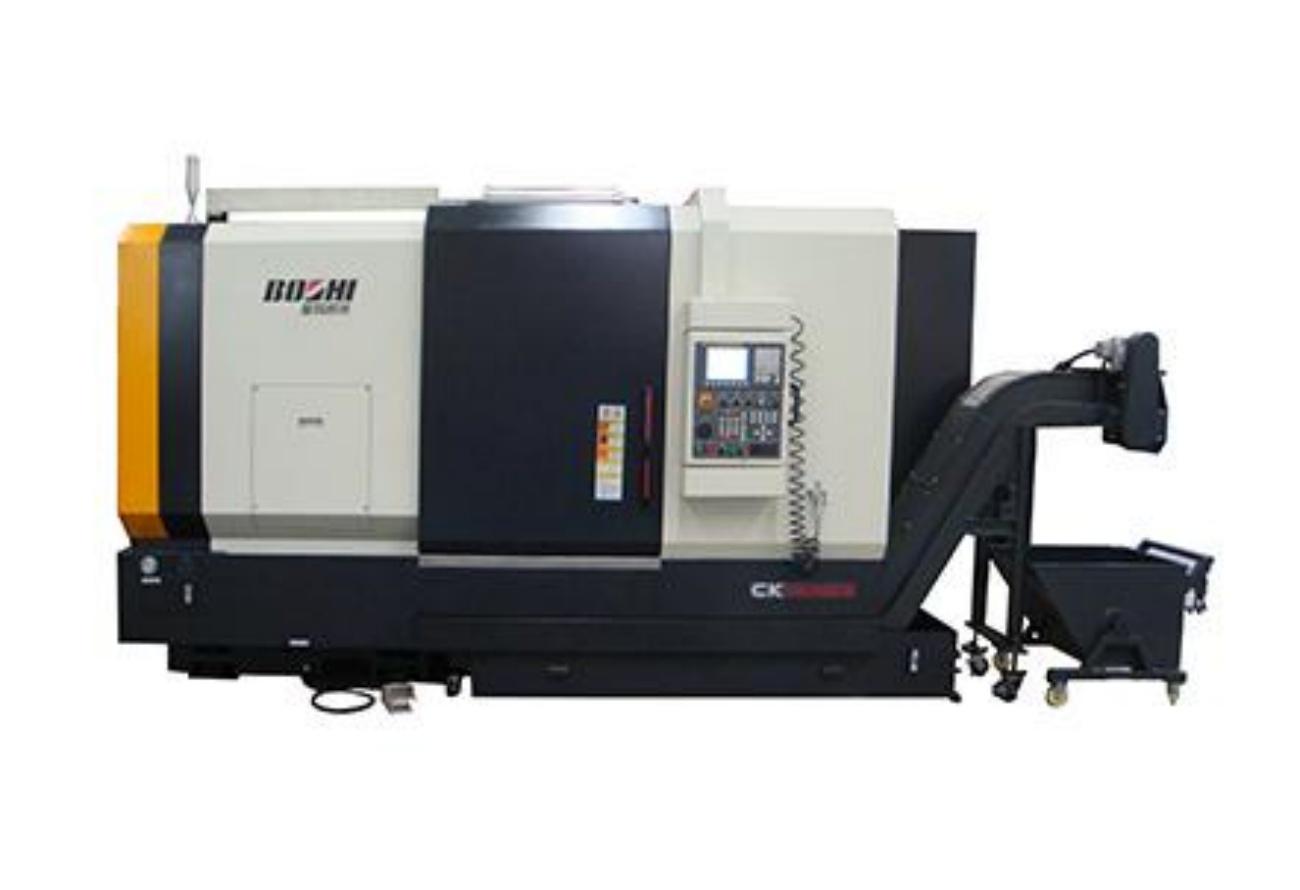

CK7670LE is a full-featured CNC lathe specially developed for high-speed and high-precision turning of aluminum alloy wheels in the automotive and motorcycle industries, with a maximum capacity of 24" wheels.

Technical Specifications:


Item

unit

Specifications

Capacity







Max. swing diameter over bed

mm

Φ830

Max. swing diameter over slide

mm

Φ650

Max. turning diameter

mm

Φ680

Maximum turning wheel diameter

inch

24

Spindle













Spindle nose

GB5900.1

A2-11

Spindle bore taper

Metric system

1:20

spindle thru-hole

mm

Φ105

Spindle bearing diameter (front/rear)

mm

Φ160/Φ140

Spindle speed

r/min

22-2200

Main motor power (continuous/30 minutes)

kW

37/45

Max. output torque of spindle

Nm

670

Apron









Slant angle

DEG

45°

Travel distance X/Z

mm

360/880

Fast movement speed X/Z

m/min

16/20

Servo motor torque X/Z

Nm

22/30

Ball screw diameter X/Z

mm

Φ40/Φ50

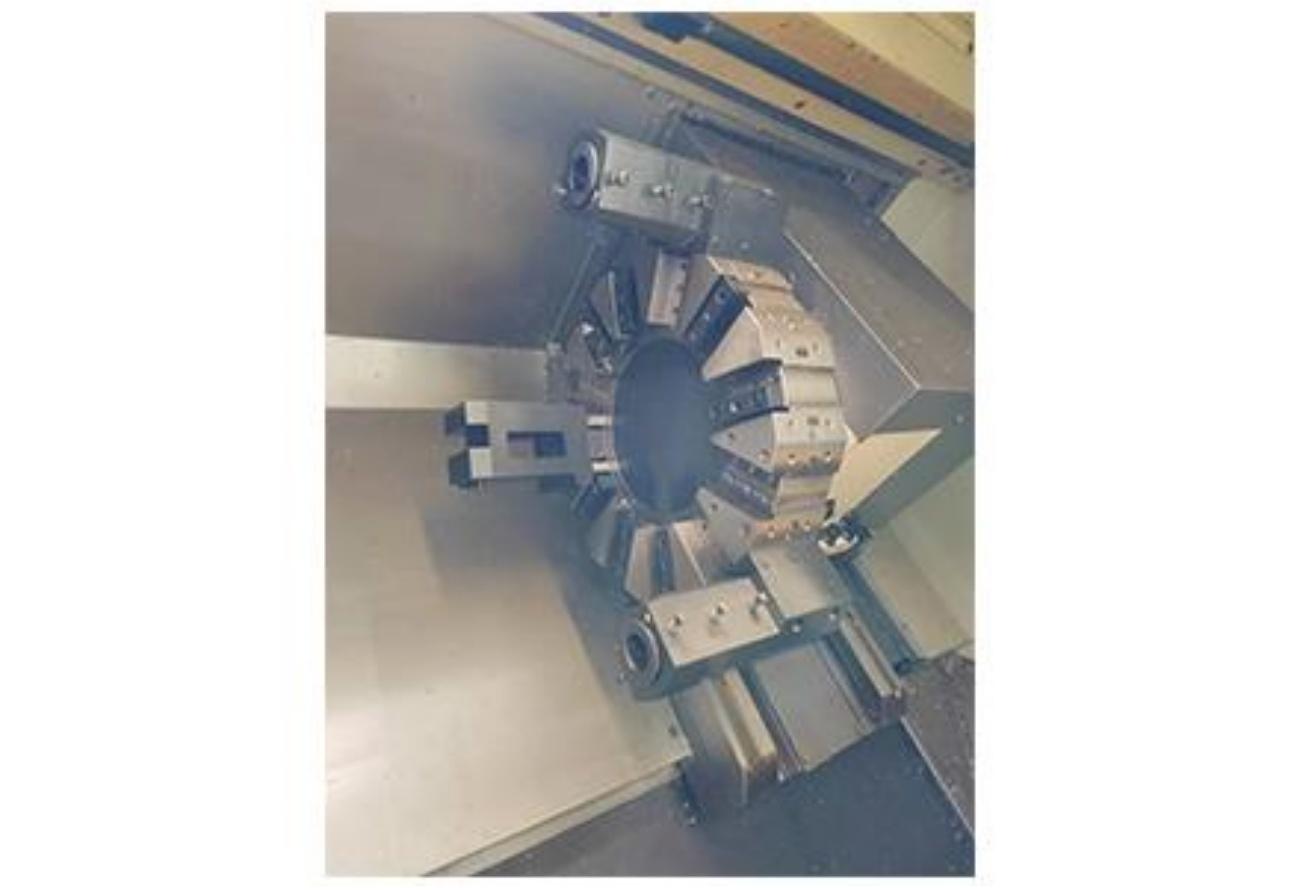

Turret



Number of stations



12

Tool size (turning/boring)

mm

32X32/Φ50

Others





Power capacity

kVA

60

Volume (length x width x height) including chip conveyor

mm

5580×2490×2460

weight

kg

10000
